Yamaha RD400C Full Restoration RSS

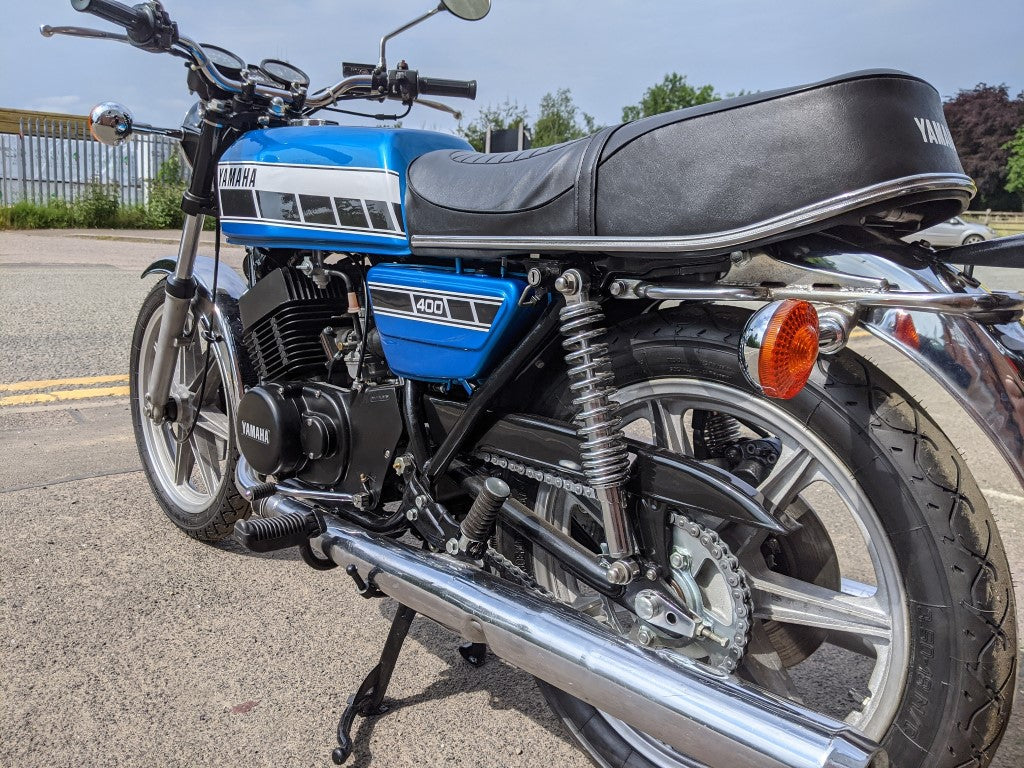

Yamaha RD400C Full Restoration - Painted
Paintwork came back this week and I am well pleased, faultless !! Fitted it all to the bike, with the seat after Colin Wlilcocks sorted it for us, and ready for road testing.
Yamaha RD400C Full Restoration - It's Running
Managed to get a big push on the rebuild, got it all assembled, electrics tested, temp' oil tank fitted, oil system primed and ready for starting up. 4 prods on the kick start and it fired up , nice and easy, no problem. tweak and balance the carbs and ignition timing , sound great ! Just need the paintwork to come back from dream machine and it will be ready for road testing.

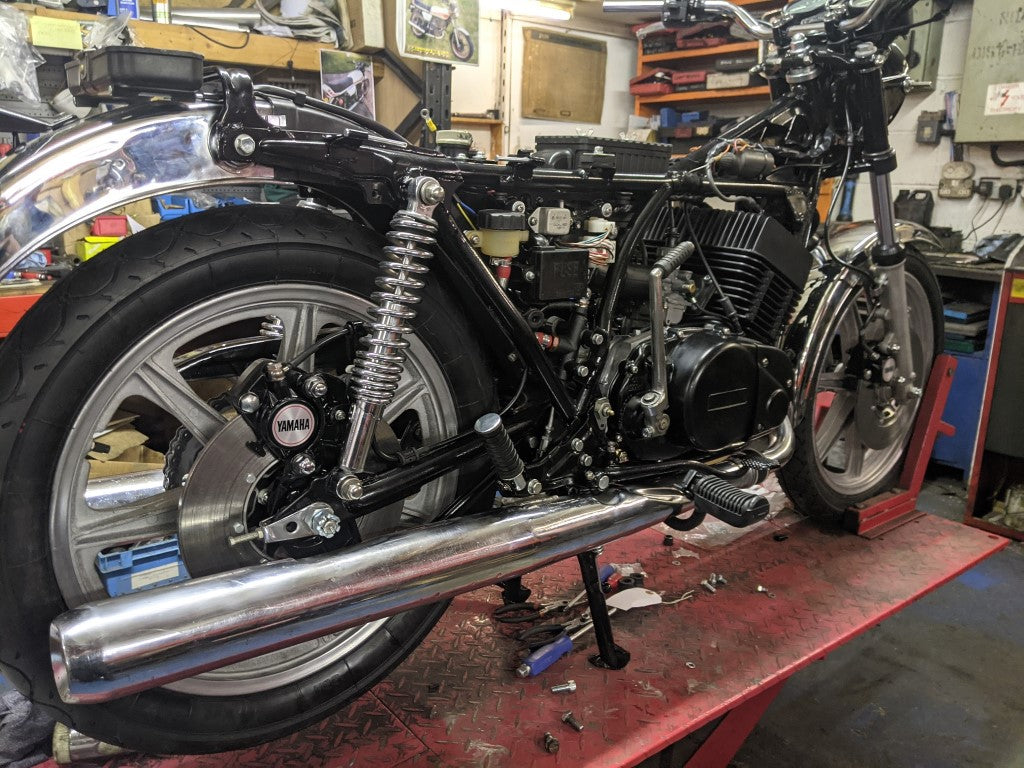

Yamaha RD400C Full Restoration - Engine is in
Engine is in and nearly finished now, caliper decals and wheels fitted. Its original exhausts are to be used after a a few hours of cleaning, they are in decent condition for its age and show a little bit of its past life patena. original rear grab rail, new indicators and wiring up is now the center of attention, while access is still good.
Yamaha RD400C Full Restoration - Assembly is going well

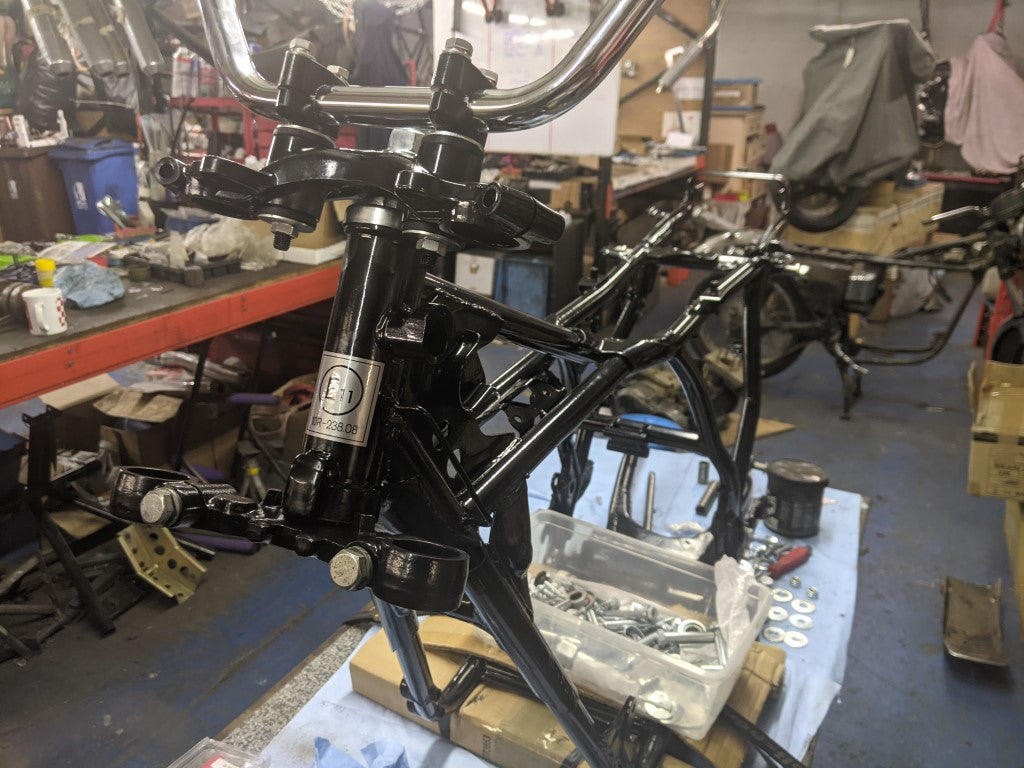

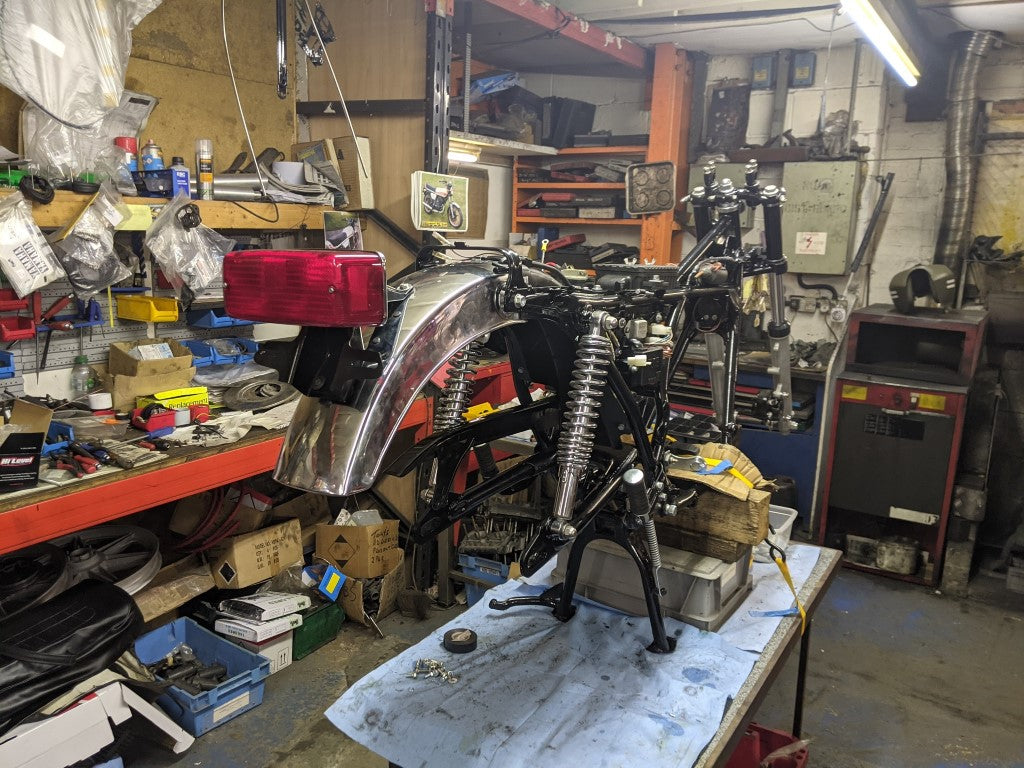

Assembly is going well, we have previously been fettling all the individual parts, bead blasting, painting ,plating, resealing bushing etc. Making sure all the new bits like bearings, seals ,tab washers , fork stanchions ( are own) shocks, brake pads etc are ready and available to help the assembly. swinging arm is fitted to the frame withe new bronze bushes (instead of plastic) yokes fitted to the steering head with new taper bearings, before fitting the reconditioned fork assemblies. Rear mudguard is a new pattern one along with a new rear light assembly. Wheels are back from the chemical cleaners...
Yamaha RD400C Full Restoration - The Beginning

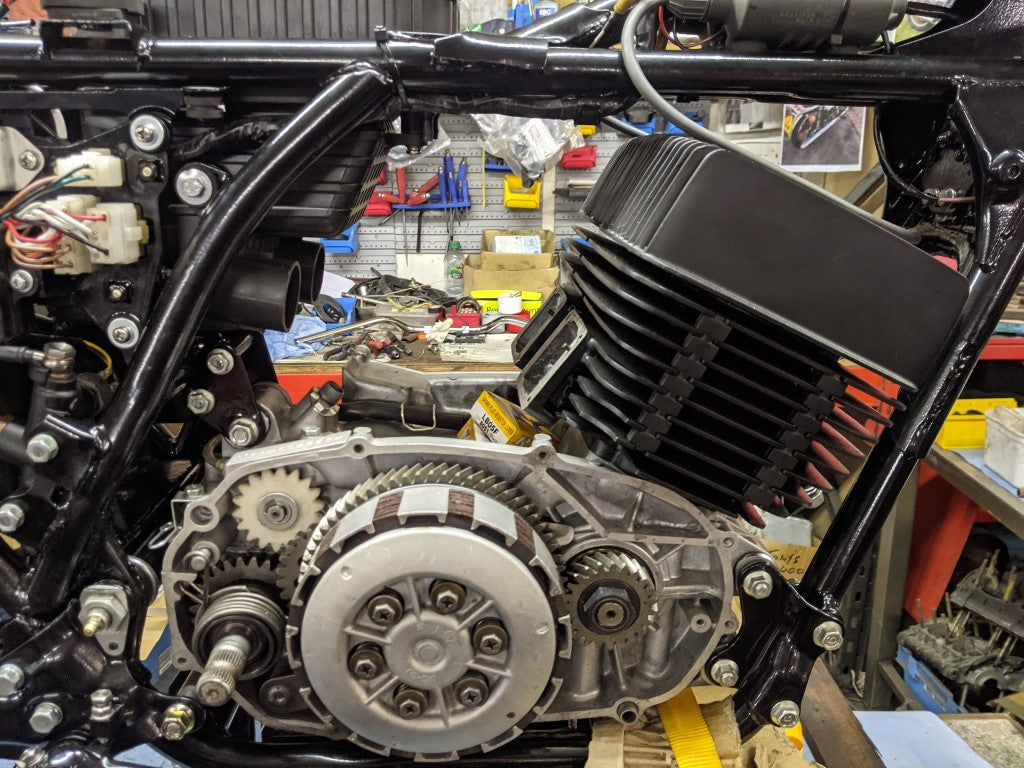

We have started to restore our RD400C during 2020 Its a low mileage Matching numbers bike I have had for a few years. I have stripped it down in specked all the parts and sent off the powder coating items and bits and bobs for plating. The Engine has had a full reconditioned crankshaft, bearings ,seals and re bore with new Mitaka 0.5mm oversize pistons. (from Grampian Motors) Cases were soda blasted and black satin stove cured paintwork applied to the relevant areas. Some new genuine Yamaha 400C reed valves were found in Holland Ours new wiring looms have arrived...
